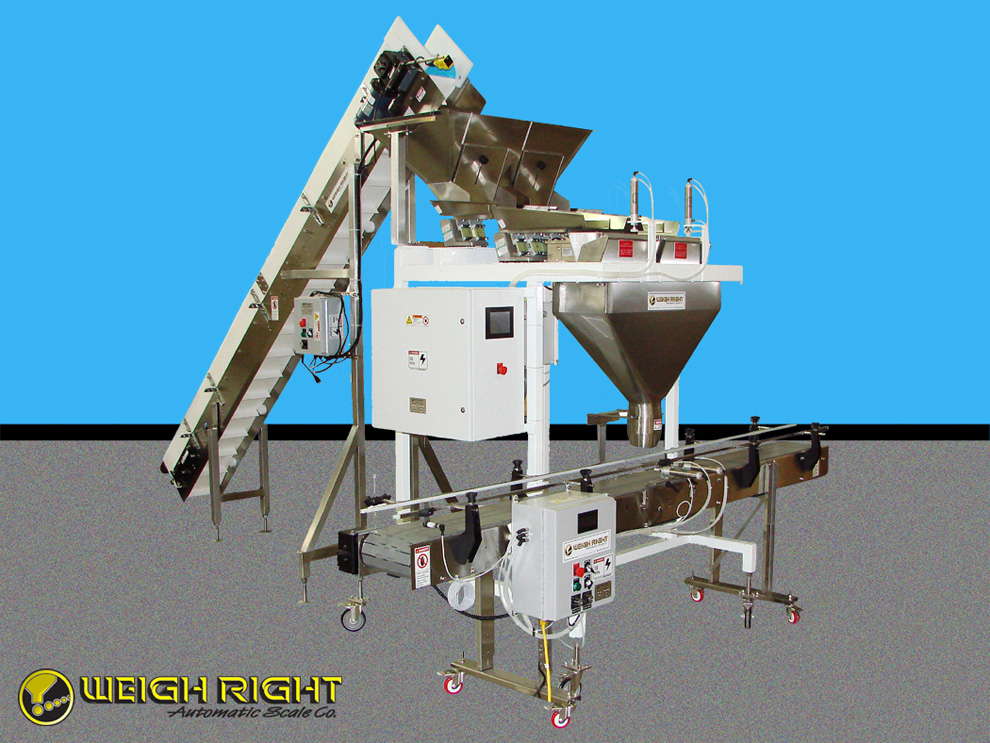

PMB-2 (Two Lane Scale)
The PMB-2 net weigher offers about twice the fill rates as the PMB-1 scale and can be used for filling a single ingredient or blending two ingredients at the same time.

The PMB-2 can also fill into a single container when indexed by a container indexing conveyor or fill into two containers indexed at the same time. Multiple filling of two containers is used when product requires more settling time before it is indexed from the fill station.

The PMB-2 will provide typically around 10 to 24 fills per minute depending on the package weight, product density and flow characteristics of the product, i.e., coffee beans flow faster than frozen broccoli.

With our experience we will be able to offer you a pretty good estimate over the phone and if we need samples for testing we’ll be sure to ask if you can send some.

After evaluating your project, we will provide you a proposal for the best designed scale providing you the versatility and options needed to meet the demands of your packaging requirements.

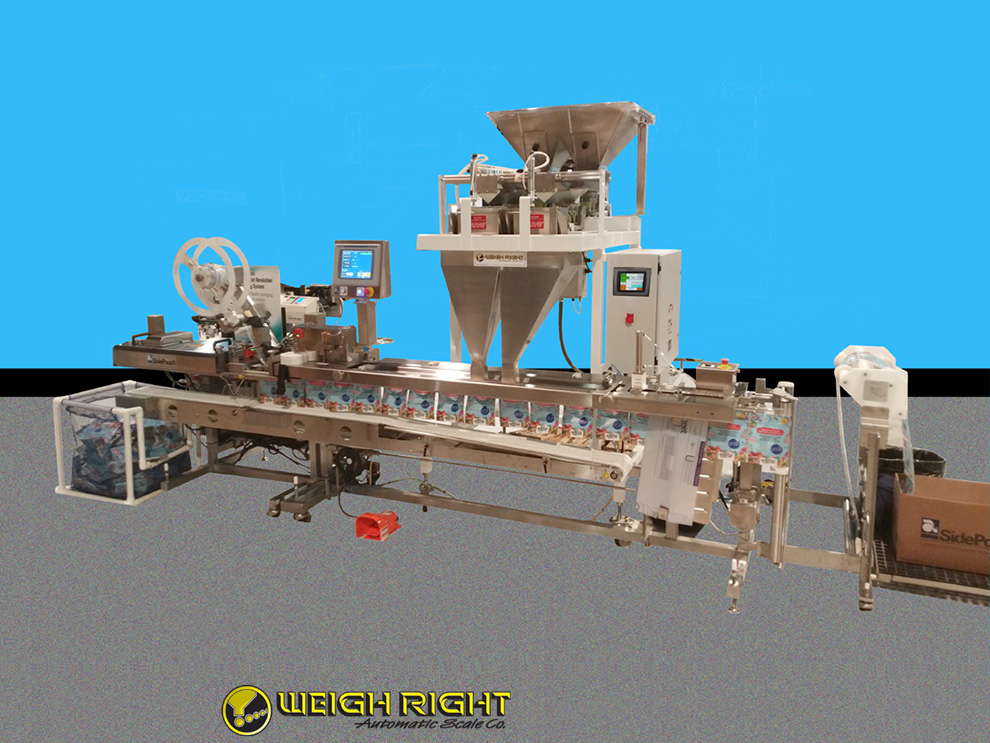

The PMB-2 can be used by one or two operators who present the package to be filled (semi-automatic) or fully automatic with an automatic bagger or container indexing conveyor.

Need more Speed?
Check out our other scales below:

PMB-2 Net Weigher

Weights & Rates*

1 oz. to 8 oz.
30 cpm
8 oz. to 2 lbs.
20 cpm
2 lbs. to 3 lbs.
16 cpm
3 lbs. to 5 lbs.
12 cpm
5 lbs. to 10 lbs.
6 cpm

*Rates are estimated. Final results determined bu product density and flow characteristics. We invite you to send us your product samples for free testing and results.
